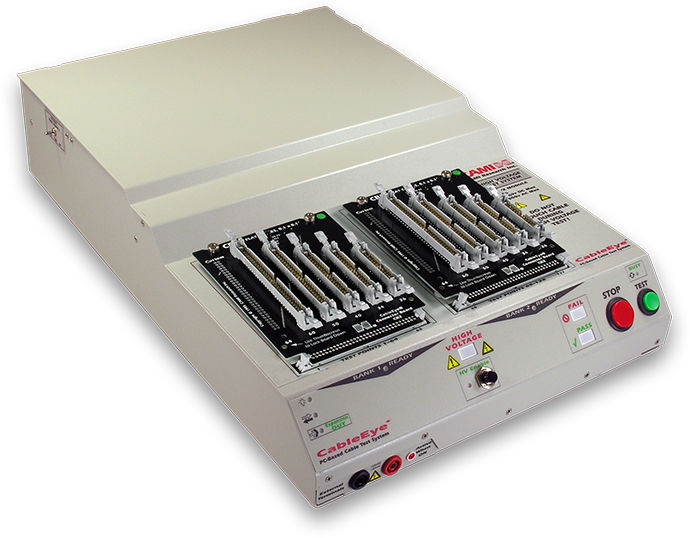

CableEye / HVX high-voltage test system, up to 1500VDC/1000VAC, 128 measuring points, resistance and insulation measurement

The HVX is the high voltage tester of the CableEye series. In the low voltage range up to 10V it offers the same functionality as the M3U. In addition, it is possible to test the insulation resistance of the respective test object with an adjustable voltage of up to 1500VDC/1000VAC.
The CableEye HVX offers: 128 (152) test points, expandable by 128 to 1024 test points each Test for continuity, open connections, short circuits, incorrect wiring and sporadic errors Resistance measurement between 0.5 and 10MO adjustable as threshold values in the low voltage range (10V) Measurement of diodes -Direction and reverse voltage High voltage test with volt-accurate test voltage up to 1500VDC/1000VAC Insulation resistance test of up to 1GO Definable ramps and hold times, as well as fast DC test port for connecting external insulation measuring devices Optional 4-wire measurement for recording resistances from 1mO Robust metal housing Built-in Test button and indicators for ready, match and fail states Probe for detecting open-ended cables Port for connecting a footswitch (model 714) and indicators for mounting the device behind a panel PC software Factory calibration certificate ( annual calibration recommended) European power supply USB interface cable 1 year warranty and software upgrade support (optionally renewable annually) Custom adapters, devices and software can be created upon request. Talk to us!
