CableEye / M3Z cable test system, 152 test points, expandable to over 2560, measurement of resistors and diodes, USB interface

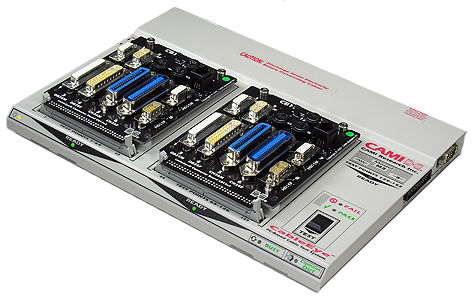

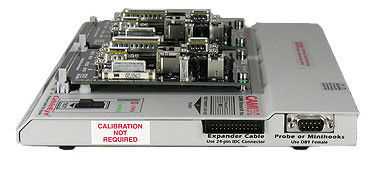

With the CableEye test system, you can easily test any cable and cable harness using your PC, for example for continuity, open lines, short circuits or faulty wiring. The CableEye cable tester is particularly suitable for the production of cables, for research and development, maintenance, network technology and prototyping as well as for everyday testing in industry, event technology, etc. With various connection boards and flexible software for Windows " The system learns your cables and then tests them. Choose from a variety of clip-on connector boards" available for many standard cable/connector types, and also easily assemble custom connectors for individual applications.CableEye M3Z (CAMI-826) - the "big system for 152 test points, expandable to 2560. Replaces the M3U(H) model. Storage of cable data for documentation purposes.
Print out wiring plans.
Printing labels.
Logging and printing error logs. Graphical representation of wiring of cables, graphical comparison of two cables.

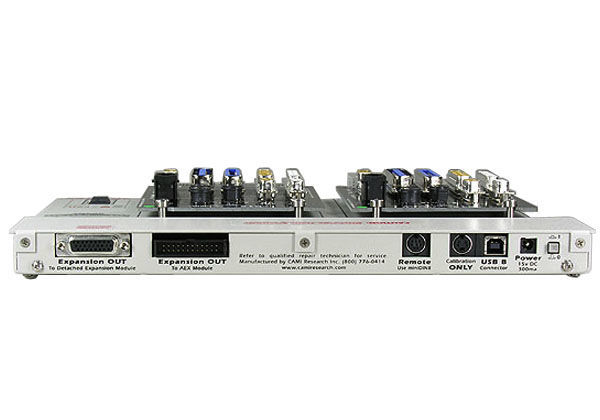

Simple, intuitive, graphical tracking of individual lines of a cable. Clip-on boards that can be installed quickly in just a few steps for various connector types such as BNC, RJ45, Sub-D, ribbon connectors and many more. Easy connection to the PC via USB. User-friendly Windows software. Can be set up for one-button operation to speed up production testing. Inexperienced operators simply need to press the TEST button to trigger a preset test sequence, the results of which are automatically saved to disk for later analysis and reporting. Continuity test:
Detects open lines, short circuits and faulty wiring.
Pass/Fail test using a given sample cable.
Finding intermittent connections. Resistance measurement:
Testing resistances integrated in the cable, e.g. B. Termination, pullup/pulldown (model dependent).
Diode alignment test.
