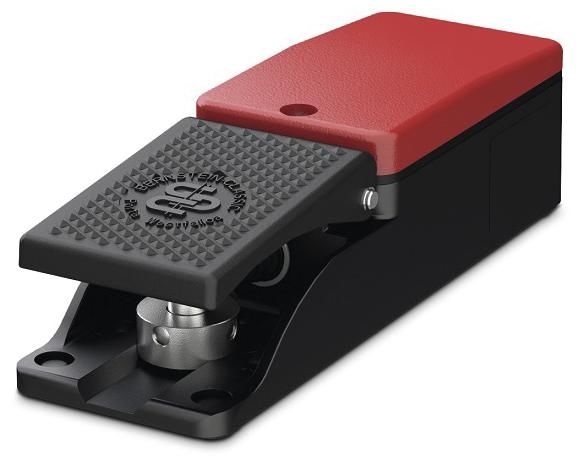

Bernstein 6061500559 Zustimmfußschalter, 3-stage 2 Zustimmkontakt 1 signaling contact

Suitable for high demands in industrial applications. Existing mounting holes offer the option of screwing the foot switch to the surface. Each foot switch is equipped with four rubber feet to prevent slipping. The foot lever is made of thermoplastic. The enabling foot switch has two enabling contacts and one signaling contact and is available with or without a detent. If the pedal is pressed to the pressure point, the two release contacts close. If the pedal is released, the release contacts open again. If the pedal is pressed down, i.e. beyond the pressure point
, the release contacts open with a positive disconnection. When using an enabling device, the standards DIN EN ISO 12100 and DIN EN 60204-1 must be observed, among others. Dynamic position detection is possible with the signaling contact. Alternatively, static position detection can be implemented using a PNP output. This makes it possible to determine the actuation position 1 - the OFF position of the release contacts (actuator is not pressed) - or position 3 - the OFF position of the working contacts (actuator is fully pressed) - and make it directly available to the control system. The approved enabling foot switch is only available in the standard version without UN cover.
Type: 6061500559
