Barix X8
|
93,75 EUR |
|
|
( 111,56 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 292716 |
| Mfg Part No: | 2004.9044 |
| Weight: | 0.5 kg |
Further Data Acquisition and Control from BarixFurther products in category Data Acquisition and Control
All products of Barix
Product information for Barix 2004.9044:

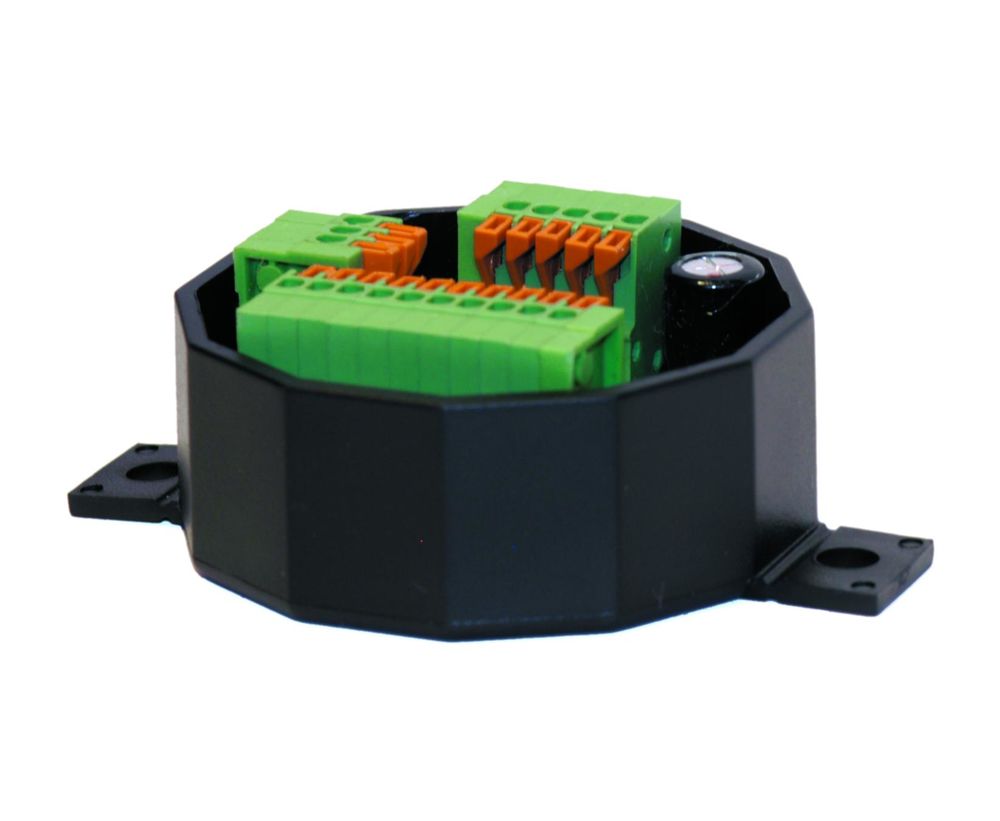

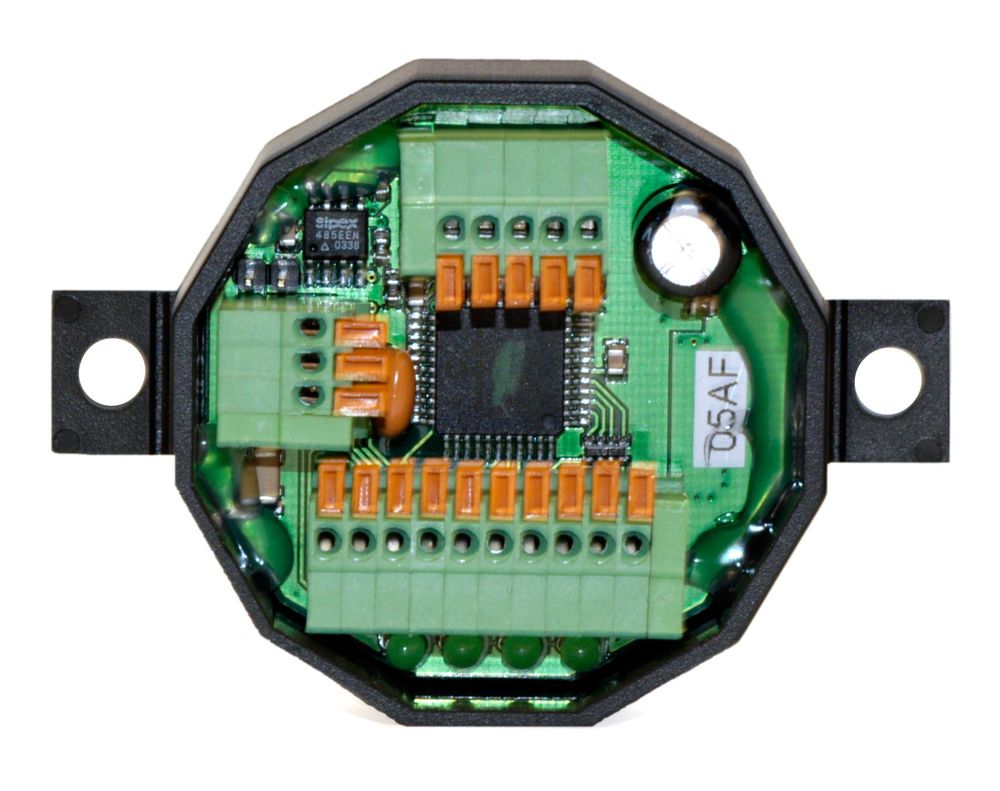

The Barix X8 is a universal, low cost, small form factor I/O extension device which connects to a host via Modbus/RTU. The eight universal, TTL level Input/Output pins can be configured to specific functionalities, such as interfacing to Wiegand Readers or Dallas 1-wire temperature sensors.
Temperature monitoring, logging and HVAC control
RS-485 Serial Port (1)
Supply Voltage (9-30V)
Wiegand Interface capable
Up to 8 Temperature Sensors supported
Designed in Switzerland and installed in thousands of locations internationally, the Barix control products have proven themselves as a very reliable, versatile product solving interfacing, data collection and control problems effectively, world wide.
With the Barionet, a smart ethernet controller which is fully programmable and can also translate between Modbus/TCP and SNMP, the Barix Modbus I/O devices can be interfaced to about any host system. Standard SNMP or Modbus/TCP OPC servers can directly talk to the Barix I/O device family.
While the R6 (6 relays, 10/16Amps at 250V) and IO12 (12 high current sourcing outputs, 12 opto isolated inputs) are typical standard components, the unique X8 provides a feature set ideal for modern building management and security applications, yet supporting the standard Modbus/RTU protocol. Its 8 I/O terminals can be individually configured to work as analog inputs (0--5V, 10bit resolution), as contact closure detection inputs, as TTL level digital inputs, as TTL level digital outputs (suitable to drive LED's). However, three special capabilities are unique in this device class:
* The X8 directly interfaces Wiegand capable access control readers or keypads to Modbus!
* The X8 directly interfaces Dallas Onewire temperature sensors to Modbus!
* The X8 directly interfaces Sensirion SHT sensors for high precision temperature and humidity reading
to Modbus!
All these functions can be configured in the X8 via the Modbus/RTU interface using standard register writes. Special functions (interfacing of rotary encoders, custom protocols etc) can be implemented on request. As the X8 is software upgradeable, new functions can be uploaded in the unit even after installation in the field.
Custom Solutions are also availlable on request.
Applications:
Voice Evacuation Systems, 8TTL general PurposeTemperature monitoring, logging and HVAC control
Features:
General Purpose I/O (8)RS-485 Serial Port (1)
Supply Voltage (9-30V)
Wiegand Interface capable
Up to 8 Temperature Sensors supported
Designed in Switzerland and installed in thousands of locations internationally, the Barix control products have proven themselves as a very reliable, versatile product solving interfacing, data collection and control problems effectively, world wide.
With the Barionet, a smart ethernet controller which is fully programmable and can also translate between Modbus/TCP and SNMP, the Barix Modbus I/O devices can be interfaced to about any host system. Standard SNMP or Modbus/TCP OPC servers can directly talk to the Barix I/O device family.
While the R6 (6 relays, 10/16Amps at 250V) and IO12 (12 high current sourcing outputs, 12 opto isolated inputs) are typical standard components, the unique X8 provides a feature set ideal for modern building management and security applications, yet supporting the standard Modbus/RTU protocol. Its 8 I/O terminals can be individually configured to work as analog inputs (0--5V, 10bit resolution), as contact closure detection inputs, as TTL level digital inputs, as TTL level digital outputs (suitable to drive LED's). However, three special capabilities are unique in this device class:
* The X8 directly interfaces Wiegand capable access control readers or keypads to Modbus!
* The X8 directly interfaces Dallas Onewire temperature sensors to Modbus!
* The X8 directly interfaces Sensirion SHT sensors for high precision temperature and humidity reading
to Modbus!
All these functions can be configured in the X8 via the Modbus/RTU interface using standard register writes. Special functions (interfacing of rotary encoders, custom protocols etc) can be implemented on request. As the X8 is software upgradeable, new functions can be uploaded in the unit even after installation in the field.
Custom Solutions are also availlable on request.
Questions & answers
What is the delivery time of Barix X8?
The article Barix X8 is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Barix 2004.9044 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Barix X8 always at the best possible price. We can give you a discount of 2% on Barix X8 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
