Bals 12747 panel socket QC 20° 16A 5p >50V >300-500Hz 2h IP44 green 90x75x96mm

Your rating:
Average rating
Rating for Bals 12747 panel socket QC 20° 16A 5p >50V >300-500Hz 2h IP44 green 90x75x96mm
( 0 / 5 ) 0 ratings
BALS 12747

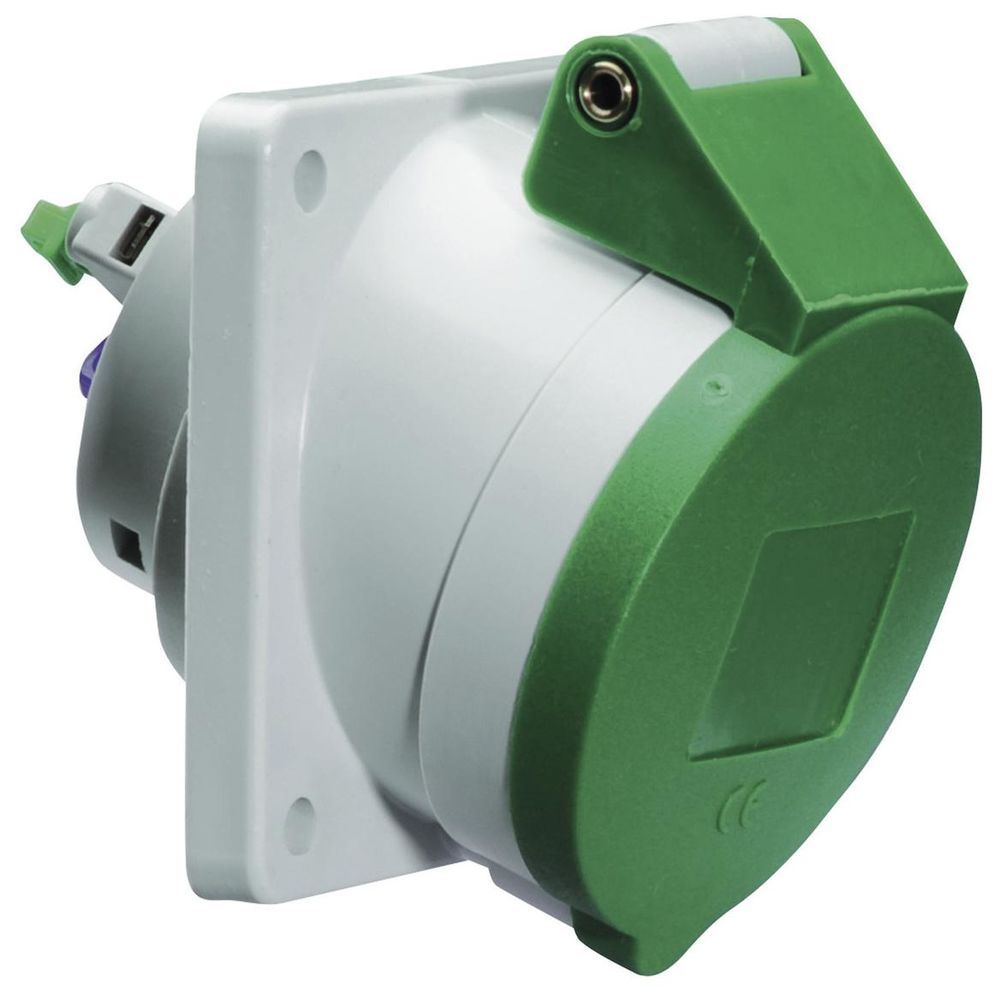

This image may differ from the desired article.
111,08 EUR
( 132,19 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 12747 panel socket QC 20° 16A 5p >50V >300-500Hz 2h IP44 green 90x75x96mm
Lieske Part No.:460908
Mfg Part No: 12747
UPC/EAN: 4024941127479
Weight:0.12 kg

Product information for BALS 12747:

QUICK-CONNECT panel socket inclined
16A 5p (3P+N+PE) >50V green >300-500Hz (> 50V~) 2h IP44
Frequency: over 300 up to and including 500Hz
Technical identification color: green RAL 6002
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: other
Device color: hinged lid green RAL 6002, housing gray RAL 7035
Device height: 90 mm, device width: 75 mm, device depth: 96 mm
Flange dimension vertical: 75 mm, flange dimension horizontal: 75 mm
Hole spacing vertical: 60 mm, hole spacing horizontal: 60 mm
Other technical properties: The inclination is 20°
Type: 12747


Questions & answers

What is the delivery time of Bals 12747 panel socket QC 20° 16A 5p >50V >300-500Hz 2h IP44 green 90x75x96mm?

The article Bals 12747 panel socket QC 20° 16A 5p >50V >300-500Hz 2h IP44 green 90x75x96mm is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 12747 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 12747 panel socket QC 20° 16A 5p >50V >300-500Hz 2h IP44 green 90x75x96mm always at the best possible price. We can give you a discount of 2% on Bals 12747 panel socket QC 20° 16A 5p >50V >300-500Hz 2h IP44 green 90x75x96mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
