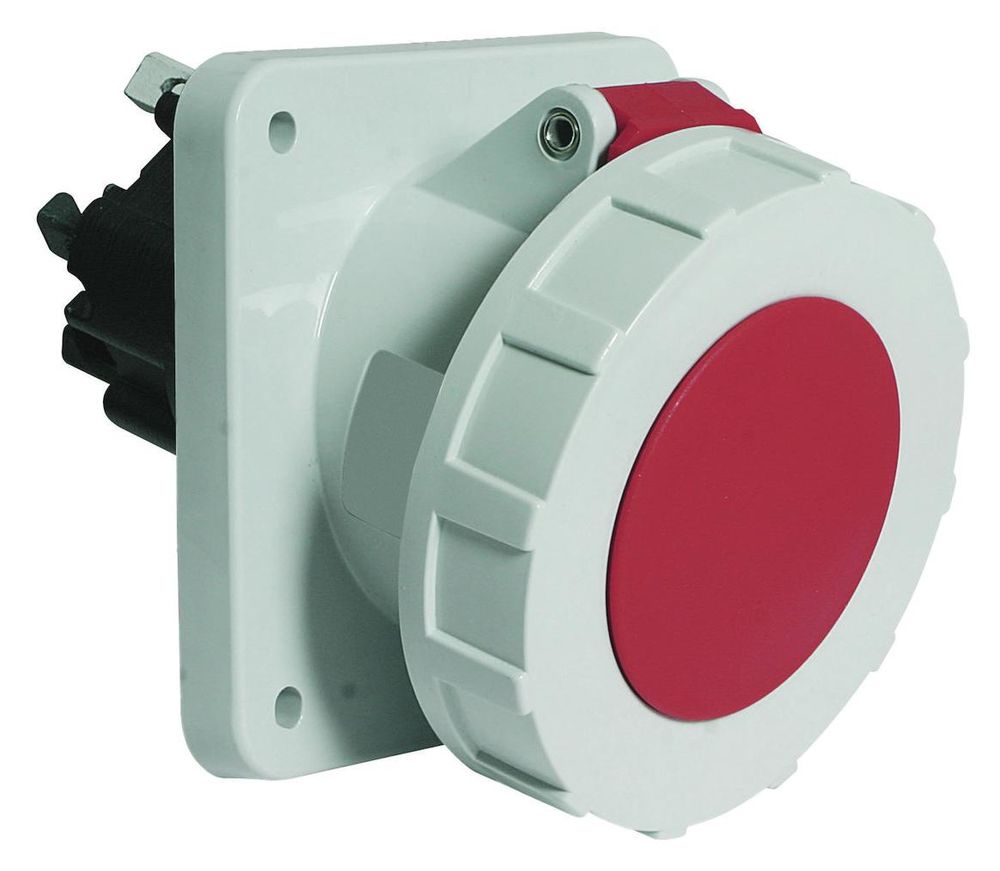

Bals 120274 panel socket QC TE 15° 63A 5p 400V 6h IP67 red H/W/D:120x111x168mm

Your rating:
Average rating
Rating for Bals 120274 panel socket QC TE 15° 63A 5p 400V 6h IP67 red H/W/D:120x111x168mm
( 0 / 5 ) 0 ratings
BALS 120274
This image may differ from the desired article.
312,64 EUR
( 372,04 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 120274 panel socket QC TE 15° 63A 5p 400V 6h IP67 red H/W/D:120x111x168mm
Lieske Part No.:466732
Mfg Part No: 120274
UPC/EAN: 4024941146845
Weight:0.12 kg

Product information for BALS 120274:

QUICK-CONNECT TE panel socket inclined
63A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with box terminals and Kontex contact
Cable entry: other
Device colour: hinged lid red RAL 3000, bayonet ring grey RAL 7035, housing grey RAL 7035
Device height: 120 mm, device width: 111 mm, device depth: 168 mm
Flange dimension vertical: 100 mm, flange dimension horizontal: 92 mm
Hole spacing vertical: 85 mm, hole spacing horizontal: 77 mm
Other technical features: The inclination is 15°
Type: 120274
