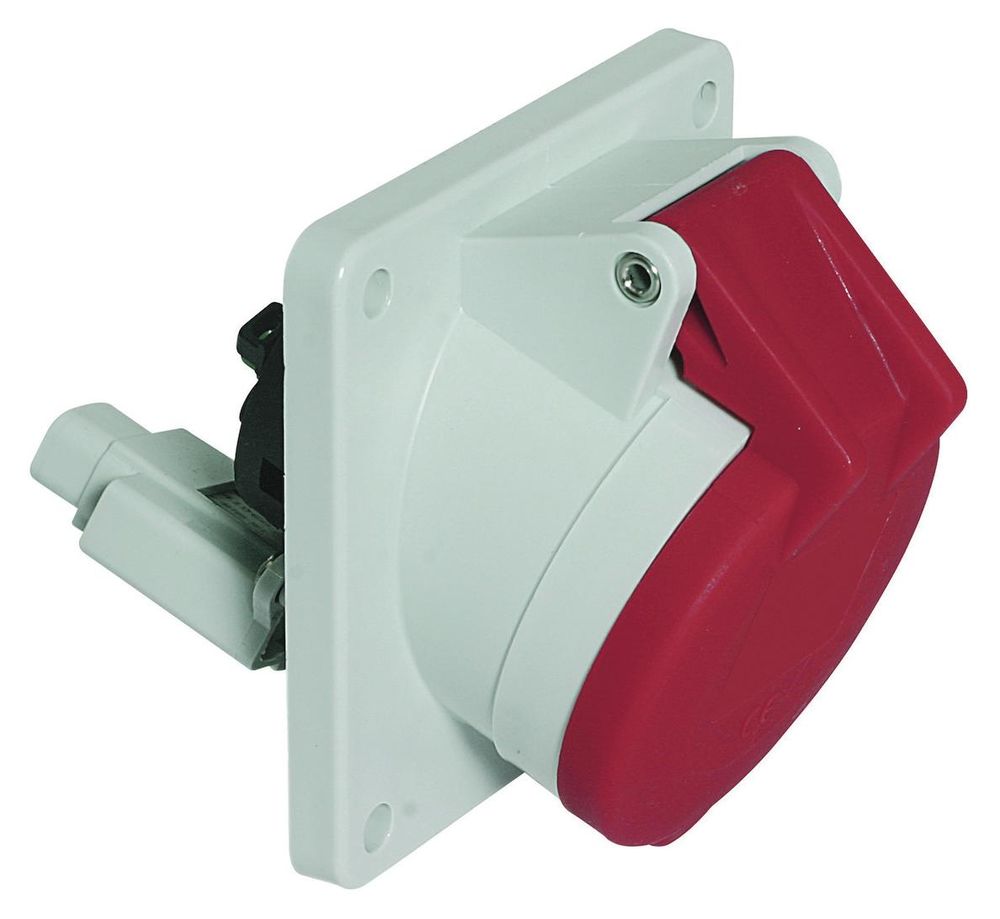

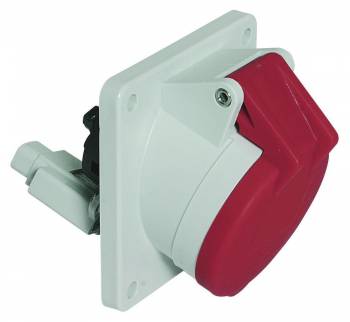

Bals 120587 panel socket QC TE 20° 16A 5p 400V 6h IP44 red H/W/D:85x85x116mm

Your rating:
Average rating
Rating for Bals 120587 panel socket QC TE 20° 16A 5p 400V 6h IP44 red H/W/D:85x85x116mm
( 0 / 5 ) 0 ratings
BALS 120587
This image may differ from the desired article.
162,16 EUR
( 192,97 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 120587 panel socket QC TE 20° 16A 5p 400V 6h IP44 red H/W/D:85x85x116mm
Lieske Part No.:460924
Mfg Part No: 120587
UPC/EAN: 4024941014755
Weight:0.12 kg

Product information for BALS 120587:

QUICK-CONNECT TE panel socket inclined
16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: other
Device colour: hinged lid red RAL 3000, housing grey RAL 7035
Device height: 85 mm, device width: 85 mm, device depth: 116 mm
Flange dimension vertical: 85 mm, flange dimension horizontal: 85 mm
Drill hole spacing vertical: 70 mm, drill hole spacing horizontal: 70 mm
Other technical properties: The inclination is 20°, The Socket is equipped with an auxiliary contact switch (normally closed contact), The socket is equipped with an auxiliary contact switch (normally closed contact)
Type: 120587
