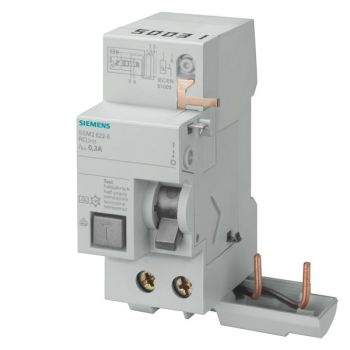

Siemens 5SM2626-2 residual current circuit breaker 2-pole

Installation > Modular devices / equipment installation > RCD

Siemens 5SM2626-2 residual current circuit breaker 2-pole

Lieske Part No. 128273
Mfg Part No 5SM26262
EAN-Code 4001869461069
Manufacturer Siemens
Here only 299,70 EUR
356,64 EUR incl. VAT

Further information for Siemens 5SM2626-2 residual current circuit breaker 2-pole

General
Number of poles2 way
Earth fault typeAC
Degree of protectionSelective
Nominal current63 A
Earth fault trip current300 mA
Operating voltage230 V
Compatibilityfor 5SL4
The Siemens RCD block type 5SM2626-2 is a 2-pole residual current circuit breaker, specifically designed for combination with circuit breakers of the 5SL4 series. It provides protection for persons, against fire, and for wiring in electrical installations and is designed as a selective type AC. The combination is tool-free, achieved by simply plugging together, ensuring quick and secure installation. The wide range of RCD blocks and the extensive program of circuit breakers offer numerous combination options for different applications.

Applications

The RCD block 5SM2626-2 is intended for use in electrical distributions where reliable protection against electric accidents and fires is required. It is particularly suitable for applications where selective disconnection is desired, to maintain power supply in other parts of the installation when a fault occurs in a specific section. Use in residential and commercial buildings as well as in industrial installations is common, where high safety requirements exist.

Functions and Equipment in Detail

The RCD block is rated for a nominal current of 63 A and detects fault currents from 300 mA. The type AC protection ensures detection of alternating current fault currents, which typically occur due to insulation faults. The selective design means the breaker only trips in case of a fault within its own protection zone, thus not affecting power supply in other parts of the installation. The operating voltage is 230 V AC.

Technology Explained Simply

The function of the RCD block is based on measuring the differential current between the incoming and outgoing lines. If the current difference exceeds the preset value of 300 mA, the breaker automatically trips. The selective design ensures that only the affected protection zone is disconnected, increasing the availability of power supply in other areas. The tool-free mounting via plug connection significantly simplifies installation and maintenance.

Compatibility and Accessories

The RCD block 5SM2626-2 is specifically designed for combination with circuit breakers of the 5SL4 series. It can be combined with various other RCD blocks, such as the 5SM2326-0, 5SM2626-6, 5SM2626-8, or 5SM2326-6, depending on the requirements for residual current protection. Additionally, adapters such as the 5ST38201 or 5ST3820-3 are available, enabling connection to remote drives. These accessories extend the functionality and adaptability of the system.

Mounting and Installation

Mounting is tool-free, achieved by simply plugging together with a compatible circuit breaker from the 5SL4 series. The connection is mechanically stable and ensures a secure electrical connection. The positioning of additional components is on the right side of the device, allowing for future expansion. Installation requires no special tools and can be performed by qualified personnel.

Advantages in Operation

The use of the RCD block 5SM2626-2 provides a high protection standard for persons and installations. The selective design minimizes the impact of disconnections and increases operational safety. The tool-free mounting reduces installation time and costs. Compatibility with various accessories allows flexible adaptation to specific requirements. Combination with circuit breakers from the 5SL4 series offers a robust and reliable solution for electrical protection in various application areas.
