Siemens 3NC32456U, EAN: 4001869521817

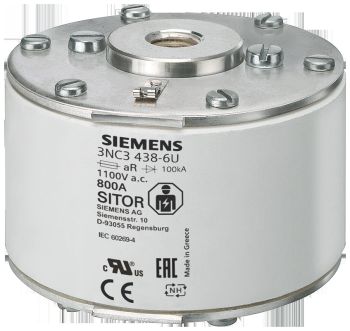

Siemens 3NC3245-6U SITOR fuse insert NH3 1600A aR

Installation > Securing material > NH fuses and accessories

Siemens 3NC3245-6U SITOR fuse insert NH3 1600A aR

Lieske Part No. 1283588
Mfg Part No 3NC32456U
EAN-Code 4001869521817
Manufacturer Siemens
Here only 678,30 EUR
807,18 EUR incl. VAT

Further information for Siemens 3NC3245-6U SITOR fuse insert NH3 1600A aR

General
Nominal current1600 A
Nominal voltage AC500 V
Nominal voltage DC440 V
Degree of protectionaR
Fuse sizeNH3
Mountingwith double internal thread
ApprovalIEC, UL, CCC
ApplicationPower semiconductors, frequency converters, UPS systems, soft starters
Disconnection characteristicsuperflink
Front indicatorYes
The Siemens SITOR fuse insert type 3NC3245-6U is a specialized protection component for electrical installations, developed for safe disconnection in overload and short-circuit conditions. It belongs to the SENTRON protection component family and is particularly used for protecting power semiconductors, such as those found in frequency converters, UPS systems, or soft starters for motors. The insert is designed for NH3 size with double internal threading, enabling flexible installation in suitable fuse compartments, switch disconnectors, or fuse switch disconnectors. The fuse is rated for a nominal current of 1600 A and provides a high level of protection through its specific disconnection characteristic.

Applications

The fuse insert 3NC3245-6U is primarily designed for use in systems with power semiconductors. This includes frequency converters, where the fuse can be installed in the input and DC link circuits, as well as in interruption and soft start systems for motors. Its application in UPS systems (Uninterruptible Power Supplies) is also intended, where reliable protection against short-circuit and overload is required. The fuse ensures the integrity of electronic components and simultaneously protects personnel and equipment.

Functions and Features in Detail

The SITOR fuse insert features a super-fast disconnection characteristic, which enables a quicker response to short-circuit events compared to conventional NH fuses. This is particularly important for protecting power semiconductors, which are sensitive to thermal and electrical overvoltages. The fuse is equipped with a front indicator, which visually displays the operating status. The characteristic curve consistency, meaning the constant and predictable response to current overloads, is ensured by the Siemens quality standard, guaranteeing reliable protection.

Technology Explained Simply

The fuse is rated for a nominal voltage of 500 V AC and 440 V DC. The designation aR (automatically resettable) means that the fuse does not require manual resetting after a disconnection event, but automatically returns to the operating state once the fault cause is eliminated. The double internal threading design allows for easy installation in standard fuse compartments and switch disconnectors designed for NH3 size. The fuse is part of the SITOR system, specifically developed for semiconductor protection and offering high reliability.

Compatibility and Accessories

The fuse insert 3NC3245-6U is compatible with various other SITOR fuse inserts in NH3 size, which are also equipped with double internal threading or knife contact. Compatible components include, for example, models 3NC3242-6U, 3NC3244-6U, 3NC3338-6U, or 3NC3340-6U. These can be combined according to application requirements and current ratings to ensure a consistent protection system. The fuse is approved according to IEC and UL standards and partially also CCC-approved, enabling worldwide application.

Installation and Mounting

Mounting is carried out in fuse compartments, switch disconnectors, or fuse switch disconnectors designed for NH3 size. The double internal threading design enables simple and secure fastening. Installation must follow the technical specifications of the respective control panel, taking into account electrical parameters such as voltage and current. The fuse is intended for use in industrial and commercial installations where high protection performance and reliability are required.

Operational Advantages

The use of the SITOR fuse insert 3NC3245-6U provides high safety in operation through rapid disconnection in case of short-circuit and overload. The super-fast disconnection characteristic effectively protects sensitive semiconductor components. The automatic reset (aR) reduces maintenance effort, as no manual reset is required. The high characteristic curve consistency ensures predictable and reliable protection, simplifying the planning and maintenance of systems. Worldwide approval according to IEC, UL, and CCC enables use in various markets without additional certification requirements.
