Siemens 3NC32386U, EAN: 4001869521695

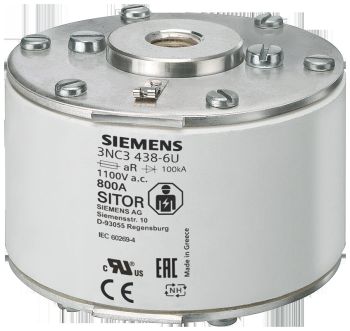

Siemens 3NC3238-6U SITOR fuse insert NH3 800A aR

Installation > Securing material > NH fuses and accessories

Siemens 3NC3238-6U SITOR fuse insert NH3 800A aR

Lieske Part No. 1283581
Mfg Part No 3NC32386U
EAN-Code 4001869521695
Manufacturer Siemens
Here only 584,25 EUR
695,26 EUR incl. VAT

Further information for Siemens 3NC3238-6U SITOR fuse insert NH3 800A aR

General
Fuse typeSITOR fuse cartridge
Degree of protectionSemiconductor protection fuse
Nominal current800 A
Disconnection characteristicaR
Nominal voltage AC690 V
Nominal voltage DC440 V
SizeNH3
Connection typedouble internal thread
Additional featureTop fuse status indicator
ApprovalIEC, UL, partially CCC
The Siemens SITOR fuse insert type 3NC3238-6U is an NH3 fuse insert with internal threads on both sides, specifically designed for use in electrical installations that require protection for power semiconductors, frequency converters, UPS systems, or soft starters for motors. It belongs to the SENTRON protection component family from Siemens and serves as a semiconductor protection fuse, which reliably disconnects in case of overload or short circuit to protect people, devices, and installations. The fuse is rated for a nominal current of 800 A and features an aR characteristic, optimized for protecting semiconductors.

Applications
This fuse insert is suitable for use in electrical installations with high requirements for protection functions. It is particularly used in frequency converters, where it can be installed in the input and DC intermediate circuit. It is also suitable for UPS systems and soft starters for motors. The application is in systems that require high reliability and fast disconnection behavior in case of faults.

Functions and Equipment in Detail
The SITOR fuse insert 3NC3238-6U is characterized by a super-fast tripping characteristic, enabling a quicker response in the event of a short circuit compared to conventional NH fuses. This is particularly important to protect power semiconductors from thermal and electrical damage. The characteristic accuracy, meaning the precise adherence to the specified tripping characteristic, is guaranteed by the Siemens quality standard. This ensures a consistent and predictable protection function under various operating conditions.

Technology Explained Simply
The fuse is rated for a nominal voltage of 690 V AC and 440 V DC. The designation aR (automatically resettable) describes the tripping characteristic, which is optimized for protecting semiconductors. The internal threads on both sides enable a secure and mechanically stable installation in suitable fuse compartments or switch disconnectors. The fuse is used in NH3 size, which represents the standard size for fuses in industrial and commercial installations. The fuse is equipped with a front indicator, which visually displays the fuse status.

Compatibility and Accessories
The fuse insert is compatible with various SENTRON protection systems and can be used in NH fuse compartments, NH fuse switch disconnectors, as well as switch disconnectors with integrated fuses. It is part of the SITOR fuse system, which also includes other fuse inserts such as 3NC3243-6U (1250 A) or 3NC3245-6U (1600 A). Combining it with other SITOR fuse inserts allows flexible adaptation to different loads and protection requirements within an installation.

Installation and Mounting
Mounting is done by inserting into a suitable fuse compartment or switch disconnector with NH3 plug connection. The internal threads on both sides ensure a secure mechanical connection. Installation must comply with the regulations of the respective electrical installation and the technical data of the fuse. The fuse is intended for use in enclosed switchgear, where environmental conditions must meet the requirements of applicable standards.

Advantages in Operation
The super-fast tripping characteristic and high characteristic accuracy ensure reliable protection of sensitive electronic components. The worldwide approval according to IEC and UL, as well as partially according to CCC, enables use in international projects. Integration into the SENTRON system ensures a uniform protection philosophy and simplifies planning and maintenance of switchgear.
