Technical data
Packaging volume	0.0014m³
Article length	9.50cm
Height packaging	0.050m
Article height	2.50cm
Operation temperature	0 to +60°C
Output	SFP (LC Duplex)
Transmission speed	10/100/1000Mb/s
Input	RJ45
Net weight	0.177kg
Weight	0.327kg
Length packaging	0.230m
Type	Media converter
Article width	7.00cm
Wavelength	1310nm
Max. distance	20m
Width packaging	0.120m
Storage temperature	-20 to +70°C
Fibre type	Single mode

Fiber uplink up to 20 km for existing copper networksLong-range site connectivity: Extend a copper network over fiber across distances up to 20 km.
Smooth migration: Couple RJ45 10/100/1000 Mb/s with an SFP slot (LC Duplex) and continue using existing cabling.
Fast deployment: Auto MDI/MDI-X and automatic duplex negotiation simplify setup.
Simplified maintenance: Status LEDs and Link Fault Pass Through support diagnostics and operation.

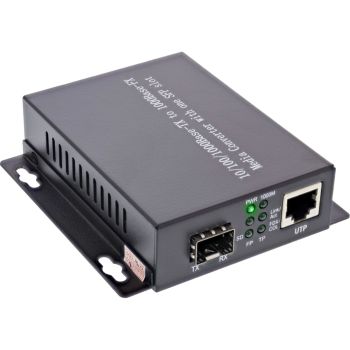

This media converter connects 10/100/1000Base-T to fiber via an SFP module (LC Duplex) and enables fiber links up to 20 km on Singlemode at 1310 nm. This allows you to connect remote segments or buildings without changing the existing copper cabling. Automatic negotiation of speed and duplex as well as Auto MDI/MDI-X facilitate quick, reliable deployment.
In professional IT environments and on-site deployments, the solution provides stable uplinks between distribution points, floors, or locations. In existing infrastructures of companies and public institutions, the compact converter can be used in a space-saving manner in desktop environments and supports efficient service deployments.
Ports: 1x RJ45 10/100/1000Base-T, 1x SFP slot (LC Duplex)
Range: Up to 20 km (Singlemode)
Wavelength: TX 1310 nm
Data rate: 10/100/1000 Mb/s (RJ45), 1000 Mb/s (fiber)
Standards: IEEE 802.3 10Base-T, IEEE 802.3u 10/100Base-TX/X, IEEE 802.1q, IEEE 802.1p QoS, IEEE 802.1d, IEEE 802.3z, IEEE 802.3ab
Features: Auto MDI/MDI-X, automatic full/half-duplex negotiation, Link Fault Pass Through (LFP), status LEDs
Power: External switching power supply 5 V DC/1 A
Operating temperature: 0-60 °C
Storage temperature: -20-70 °C
SFP modules are not included
